Ellison balanced doors made from formed bronze are constructed with a minimum stile width of 2-¾ (3-½ preferred), a minimum top rail height of 2-¾ (3-½ preferred), and a minimum bottom rail height of 6, though 10" is recommended to comply with 2010 ADA Standards. In most cases, the minimum face width of the frame material is 3, and frame depth is a minimum of 5. Glass and glass thickness may vary.

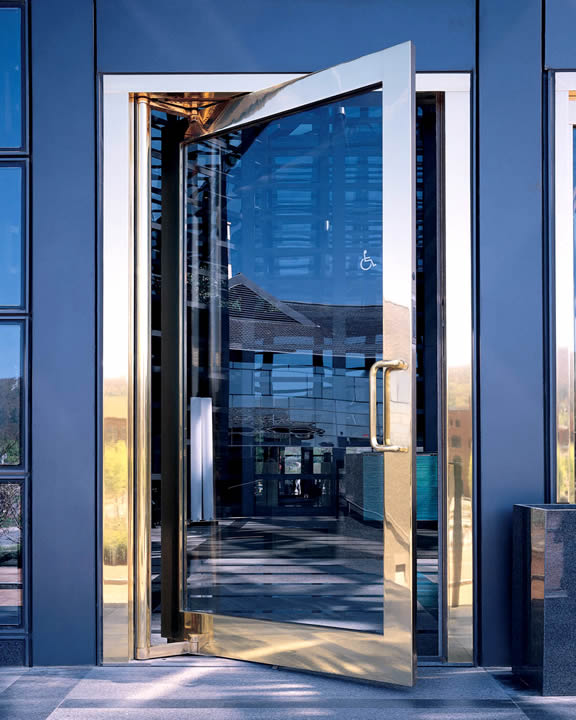

Ellison formed bronze balanced doors can be constructed to suit an architects design concept. The shaft containing the torsion bar closer spring can be either concealed within the formed bronze frame, or exposed. These doors can also be equipped with Ellison PowerNow power operators.
For more information, please visit www.ellisonbronze.com.
